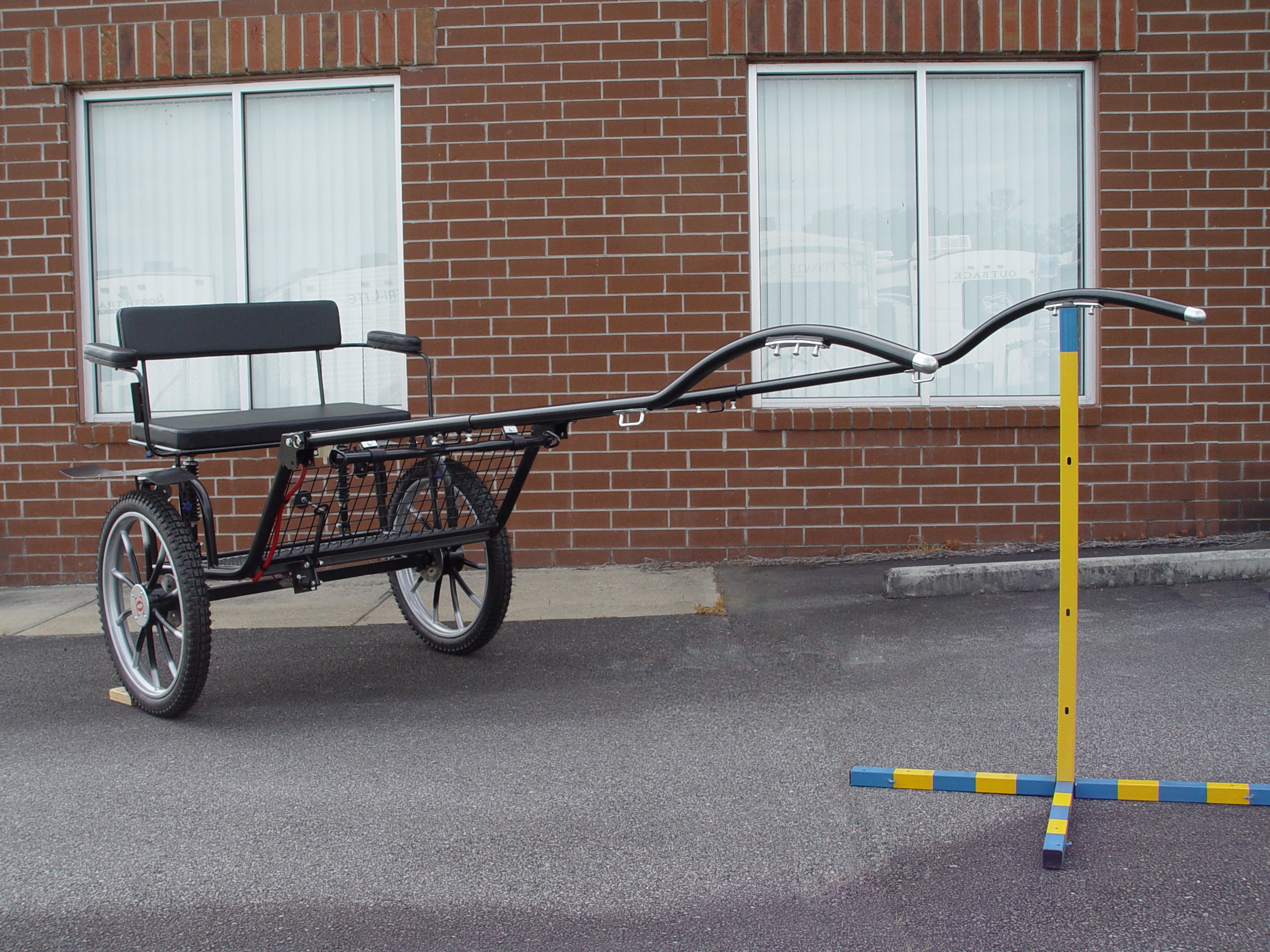

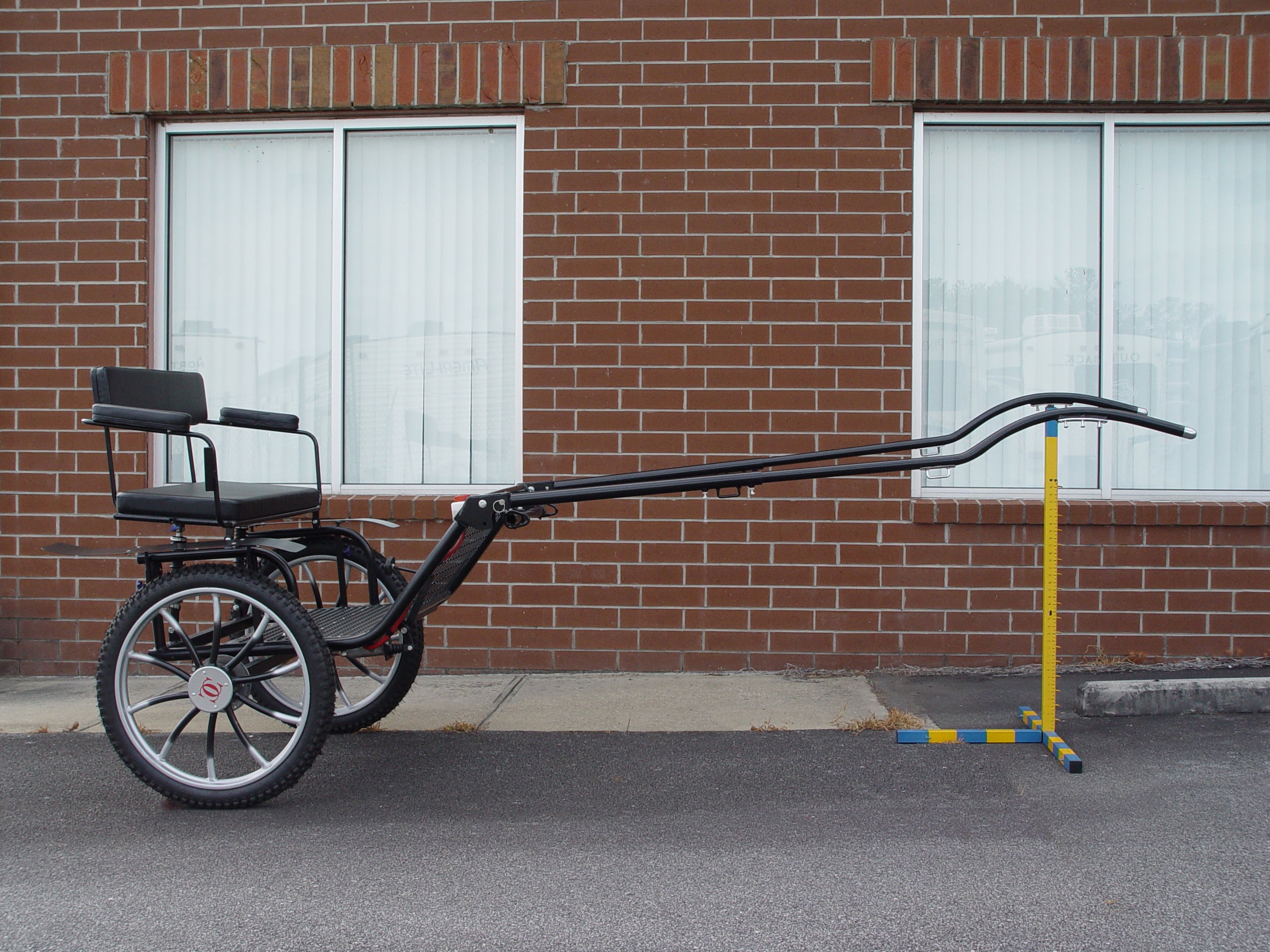

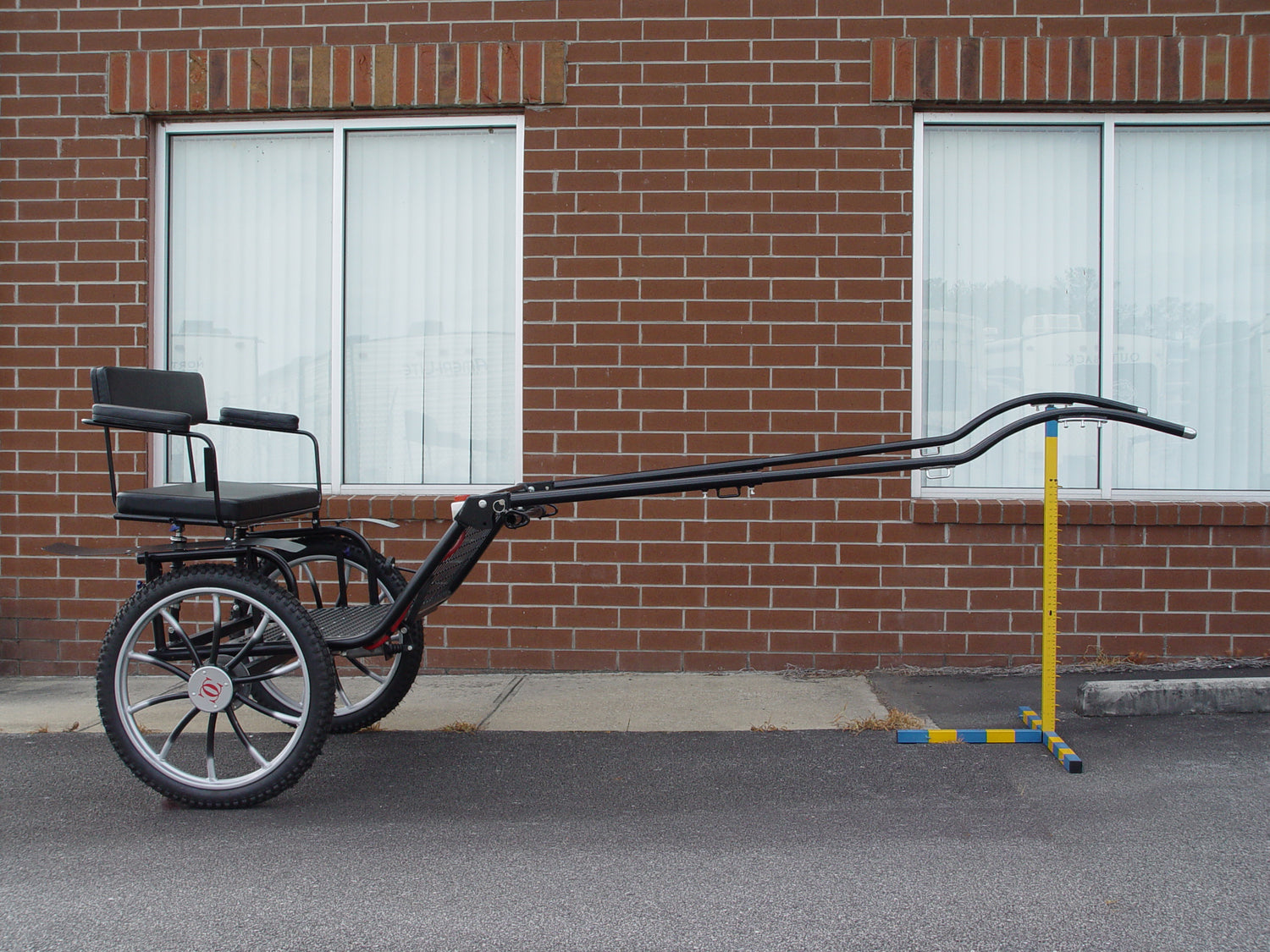

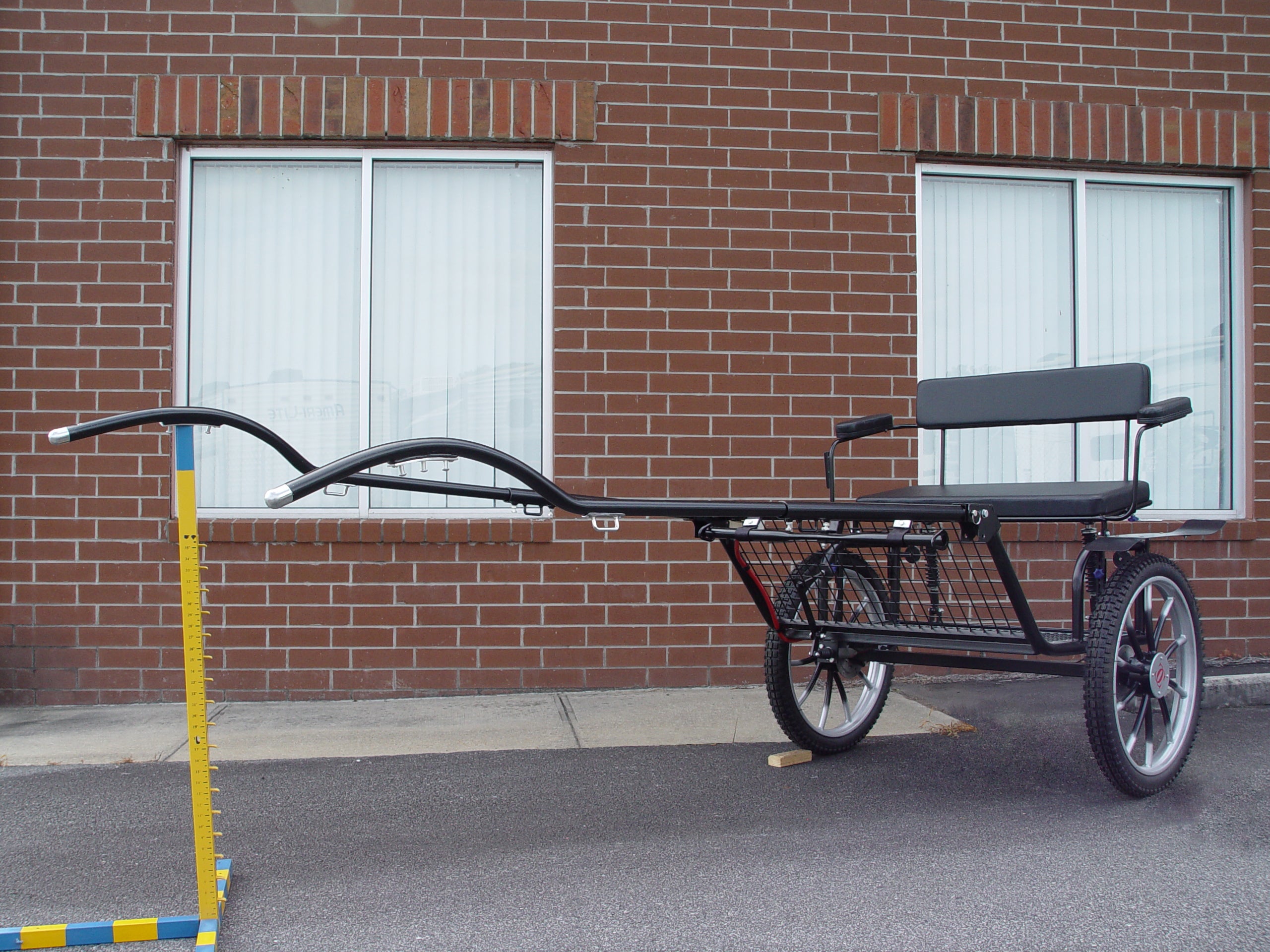

* Two-Wheel Carriage (Horse Cart) with Hydraulic brakes for Horses, Ponies, and Other Large Equines

This model carriages are offered by Animal Sports. The model was designed by a German carriage engineering Firm.  Each cart comes with pneumatic tires on solid steel wheels. The cart is equipped with a hydraulic brake system. The model of the carts is CC2200.  The body structure and made are of steel with a safe driver's deck. The cart was designed and made with the achievement of the strength - weight at its optimized equilibrium, yet reaches the maximization of the safest and the most comfortableness for drivers.

CC2200 Specs

2-wheel horse cart has two sizes can fit horses, ponies and equines from 13 to 16 hands.

Body type and structure:  Steel frame – steel, made with the consideration of strength v weight optimization, The most safety and comfortable features incorporated into the design;

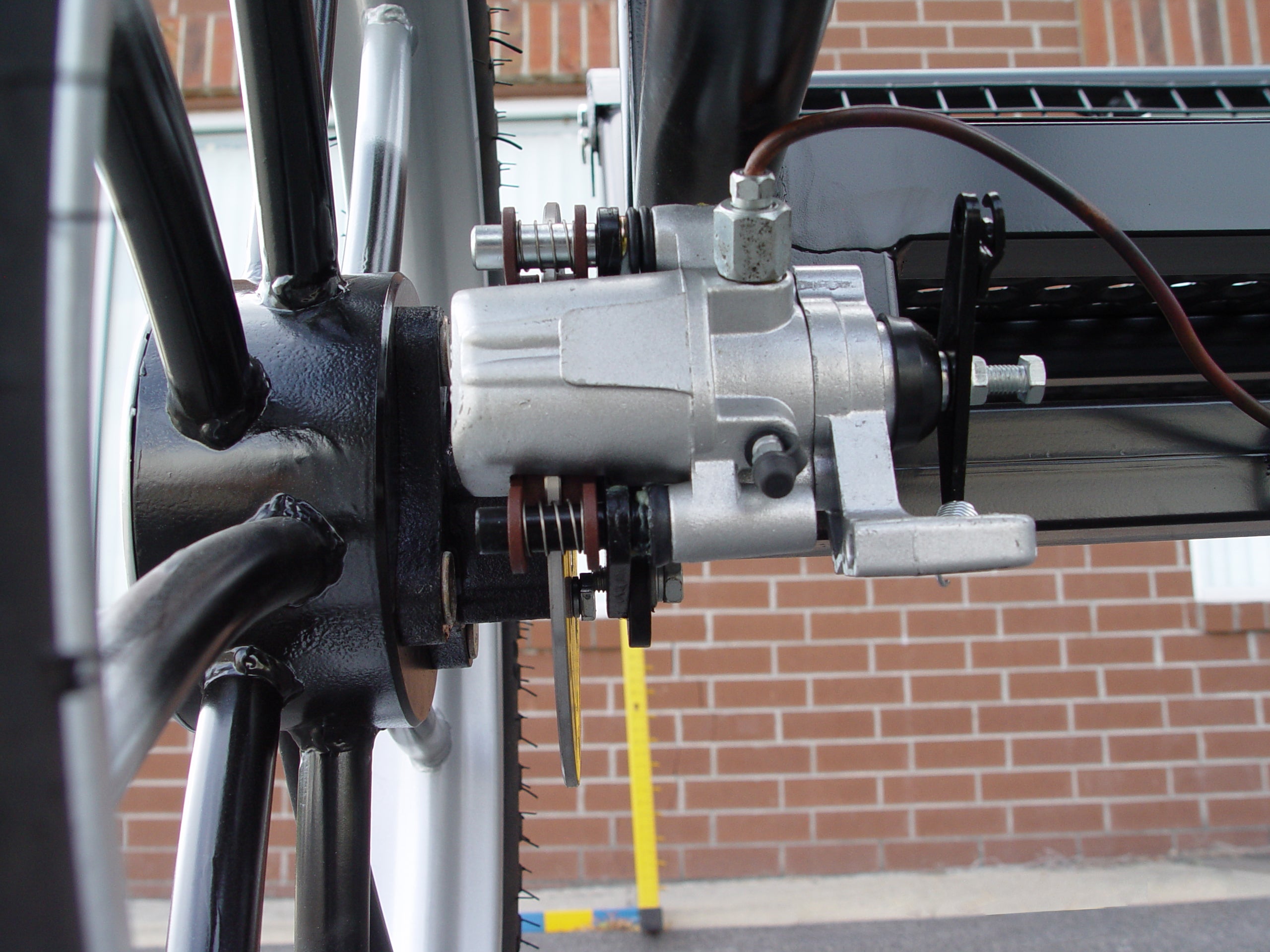

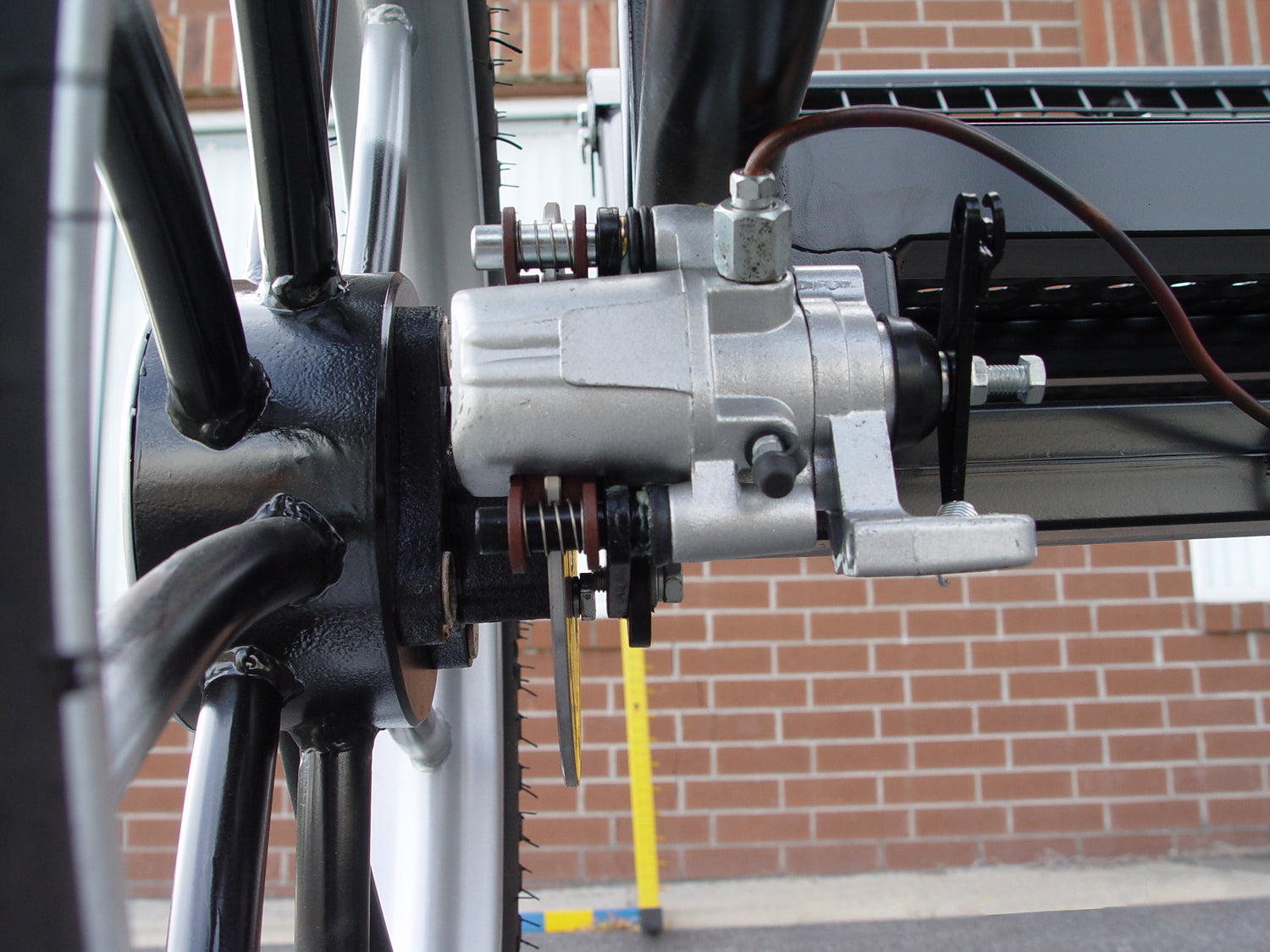

Brake: Driver front foot peddle, hydraulic disk brake, a newly designed hydraulic master cylinder is installed for better performance and longevity;

Cart length: Cart length – from front, tip of shaft/extension to back of dust cover,          (1)   without extensions: 56” shaft in vertical position and 86” shaft in horizontal position,(2)   with extensions: 118”-140”;

Cart width: 53” from outer side of dirt cover to the other. 51” from outer side to side of the wheels; the distance of wheel track center to center is 47.5”;

Cart height: From ground to the top of the seat back: 52” – 56” depending on the sizes of wheels installed;

Driver' deck measurements:  (1) Deck height: the cart deck height is about 19.5” with 29.5” wheels on cart; (2) Deck width: 39”;  (3) Deck depth: 20”; (4) Leg room: 42”

Driver Seat: (1) Seat type: bench seat, accommodating 1-2 people;  (2) Seat width: 38”; space: 42” between two armrests; (3) Seat height: 36” when the wheel size is 29.5”; (4) Seat depth: 16”;  (5) Seat fill: 3” thick high-density foam; (6) Seat Upholsory: genuine leather;

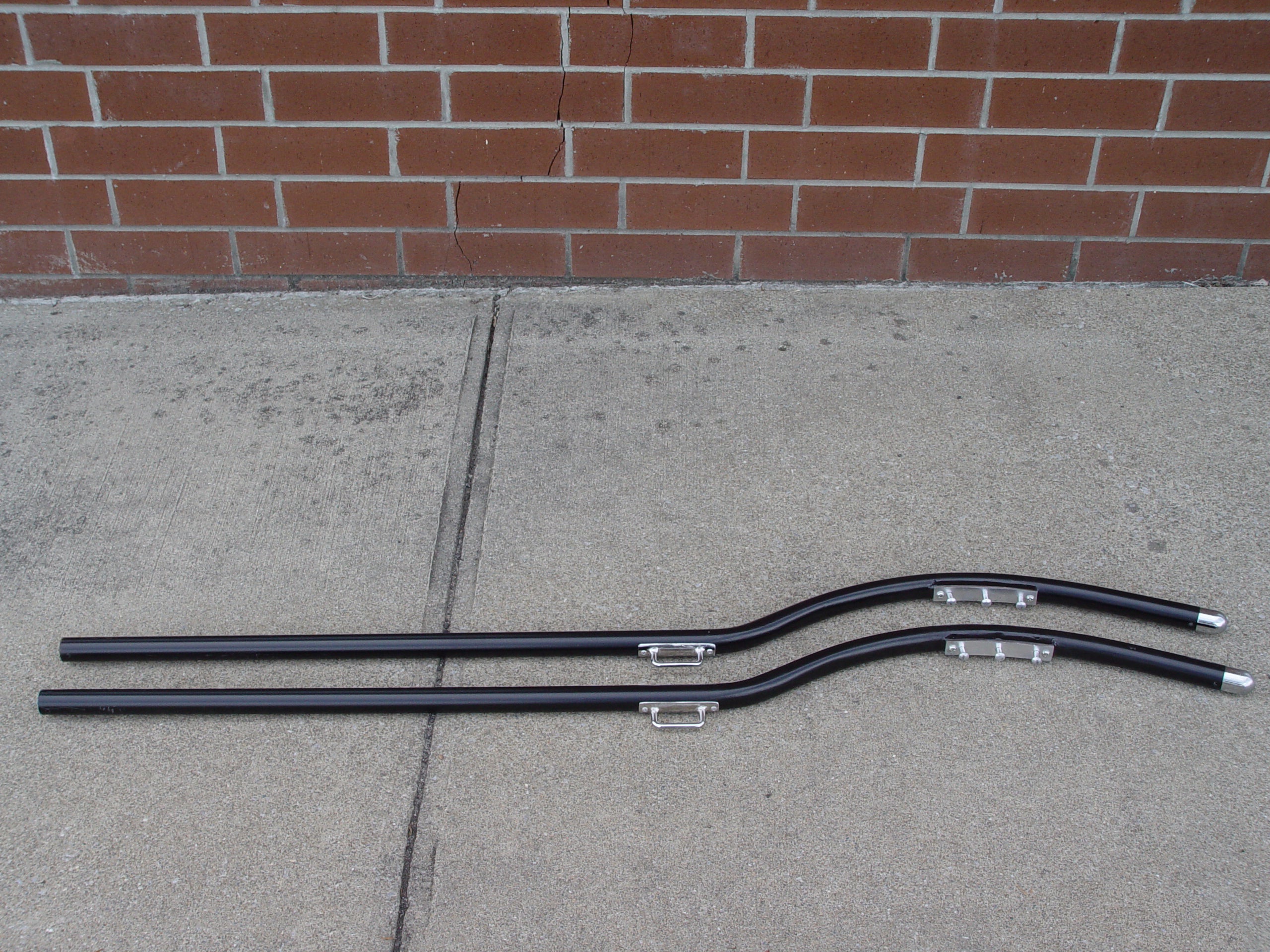

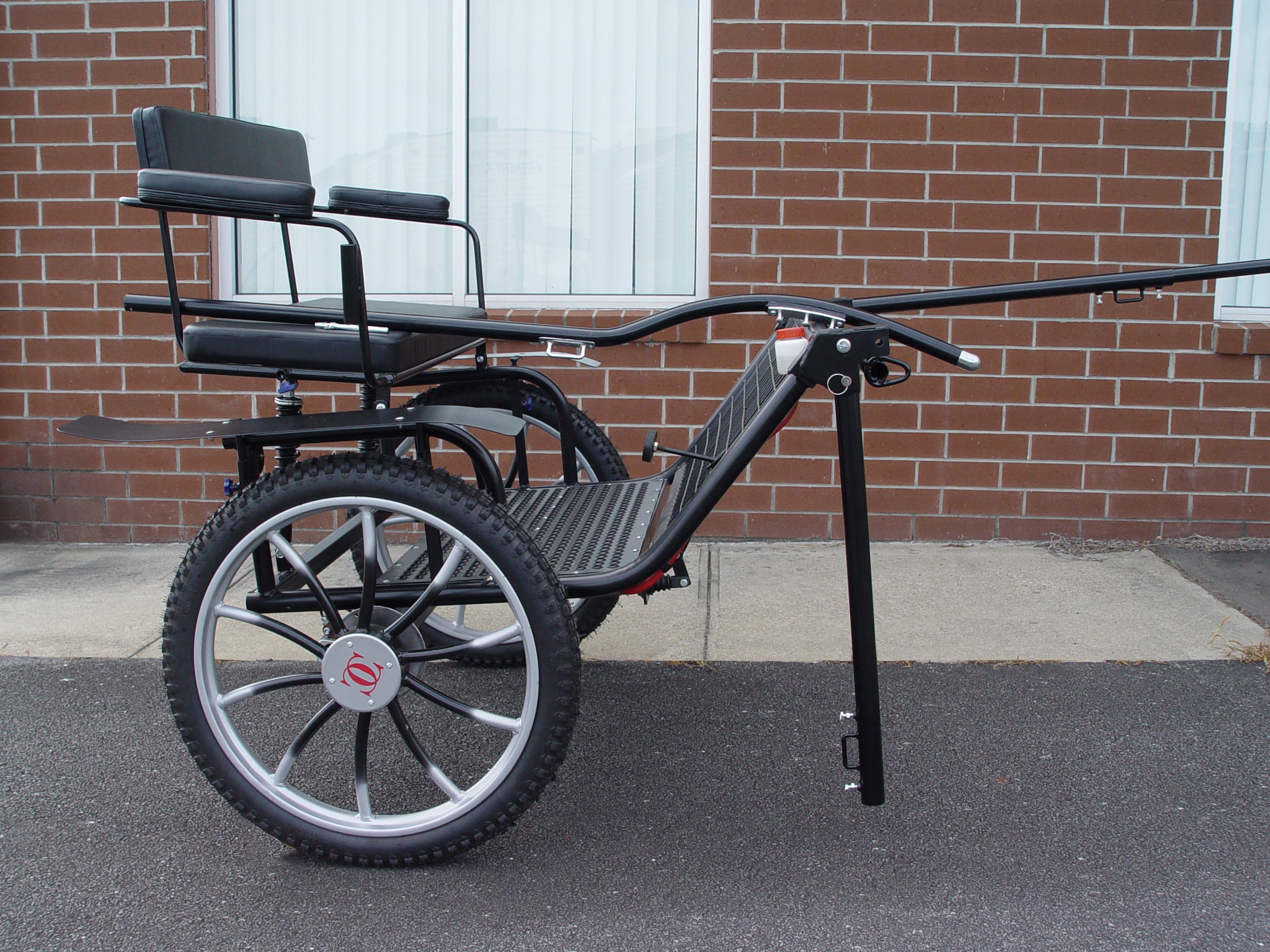

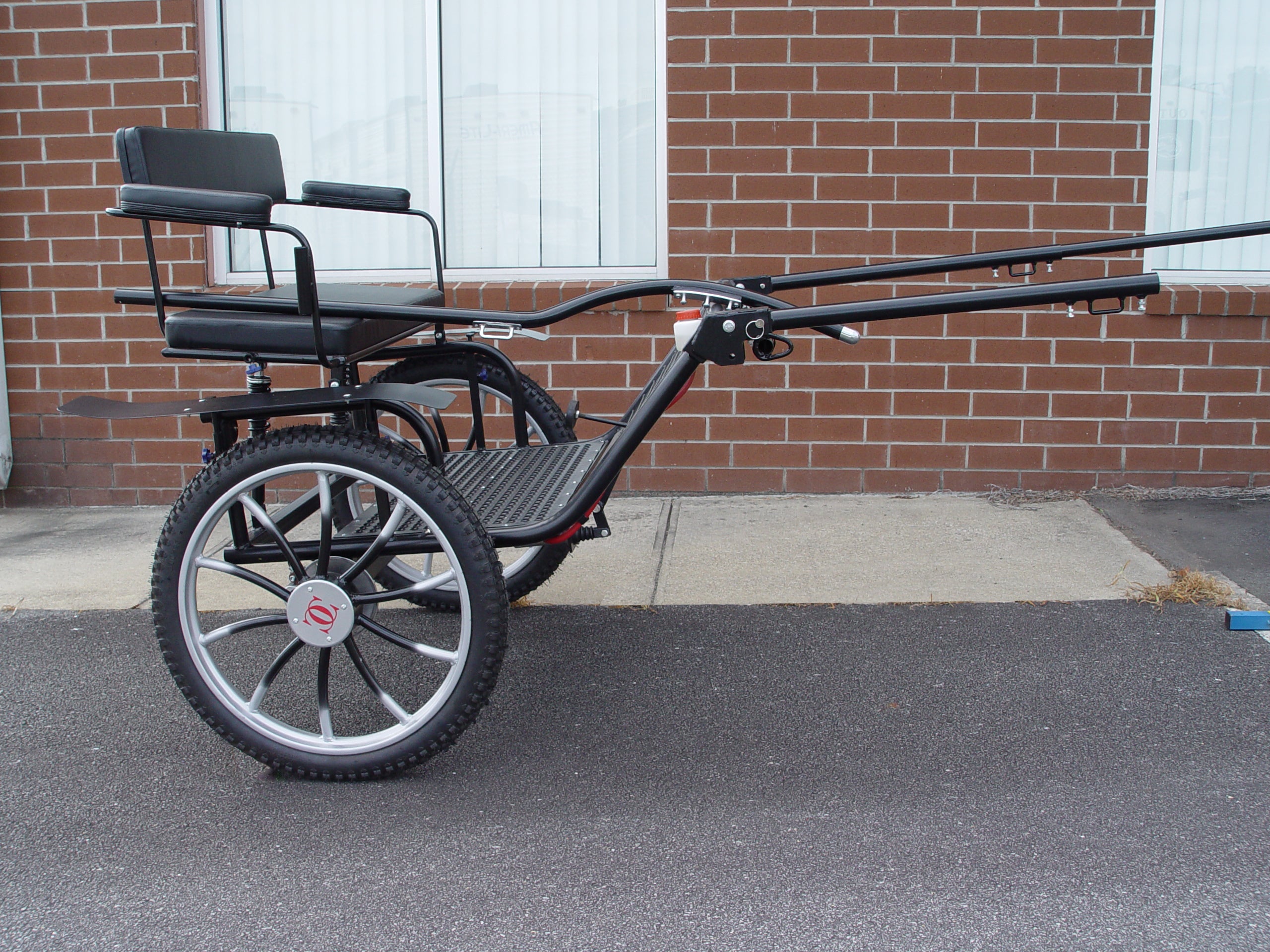

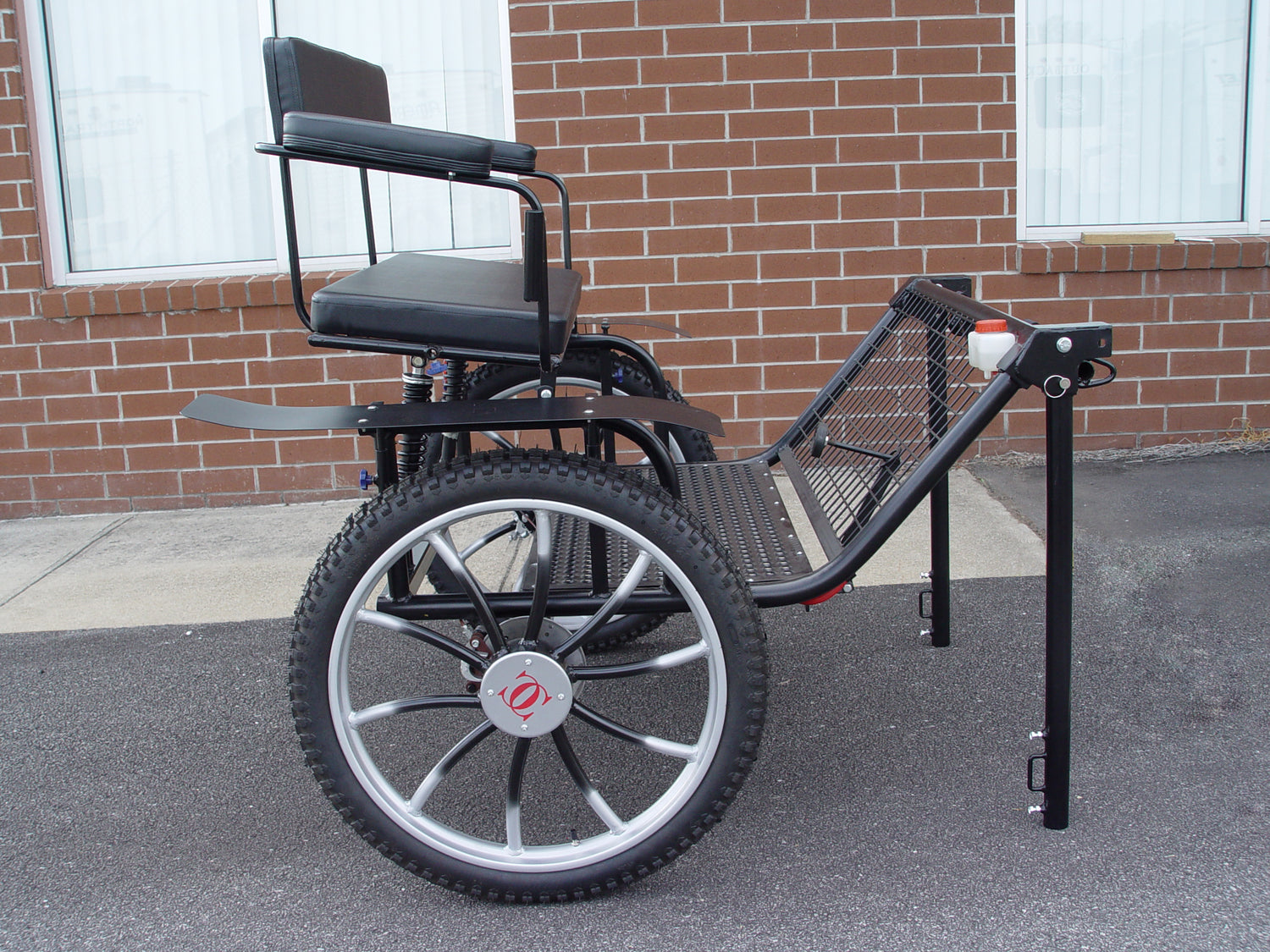

Shafts and extensions:  (1) Shaft Length: 33”;  (2) Distance between shafts: 36”; (3) New design, foldable shaft, each can be folded down independently with a snap pin from horizontal to vertical position for supporting the cart stand-alone and shortening the overall body length to 56”, compared to un-foldable shaft cart length could be 86” long. (4) Extensions: The extension length is 63”. When the extensions are installed, the horizontal distance from tug stop spot to swing-tree is 68”, with an adjustable distance about 20” (48”- 68”).   The height from ground to the tug stop spot with 29.5” wheels installed is about 50” with adjustable range of 46 - 54”; (5)  Extension shape: Sawn-neck with chrome tug stops and tips

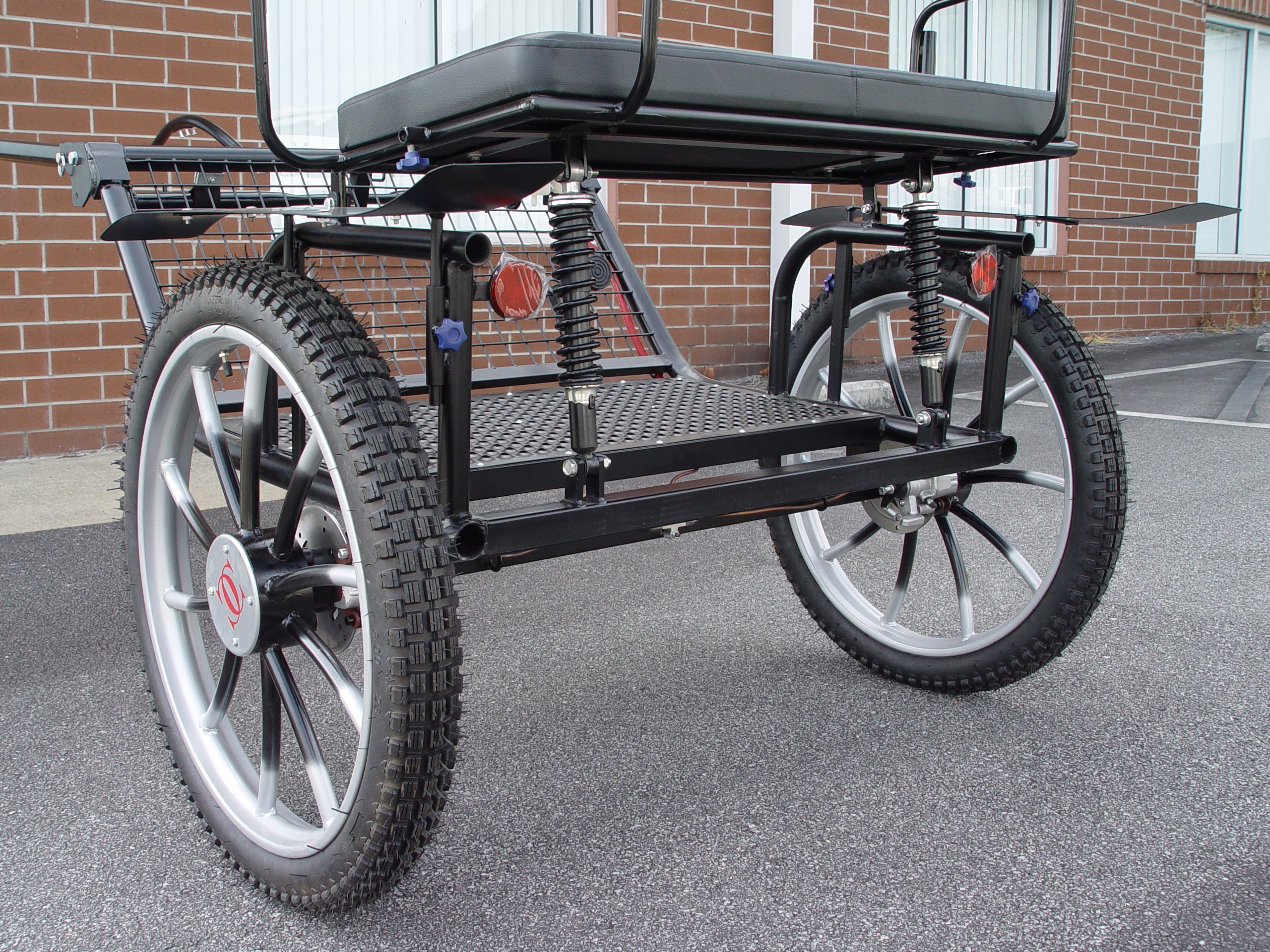

Suspension: 2 under seat coil springs + air piston cylinders

Swingle-tree: Swingle-tree width is 32”, bolted onto the cart, each end has a trace loop for easy hookup or tie up the harness;

Wheel-tire size – diameter: (1)   Pneumatic tires 25.5” and 29.5” tires, the cart comes with two pneumatic tires;  (2)   Solid Tires 25.5”, 29.5” and 33.5”. Solid wheel-tires purchased separately;  (3)  Curved spokes made the cart attractive, and outstanding look to other type of 2-wheels. The strong structure of pneumatic tires provides comfortable support and smooth touching on rough trails, leading to absolutely pleasant impression and driving experiences

Net weight: 155 lbs: Weight bearing: 750-850 lbs depending on the type of tires

Options:

(1) Wheel-tire option 25.5” and 29.5” Pneumatic tires come with the cart. Solid tires are additional with additional cost depending size.

(2) Color option: Black and burgundy

Partial assembling - required : It requires a basic assembling at buyer’s end. The assembling instruction manual is attached with the shipment, available online download as well.

Shipping & Delivery:  Selected freight carrier, who will provide lift gate service deliver the shipment to your door.

Curved wheel spokes made the cart attractive, and it spinning with gorgeousness. The strong structure of pneumatic tires provides comfortable support and smooth touching on the rough trails, leading to absolutely pleasant impressions and experiences to driving with them.

25.5" wheel size:  $ 2595.00/ea, with $350 flat freight shipping;

29.5: wheel size: 2695.00/ea. with $350 flat freight shipping
